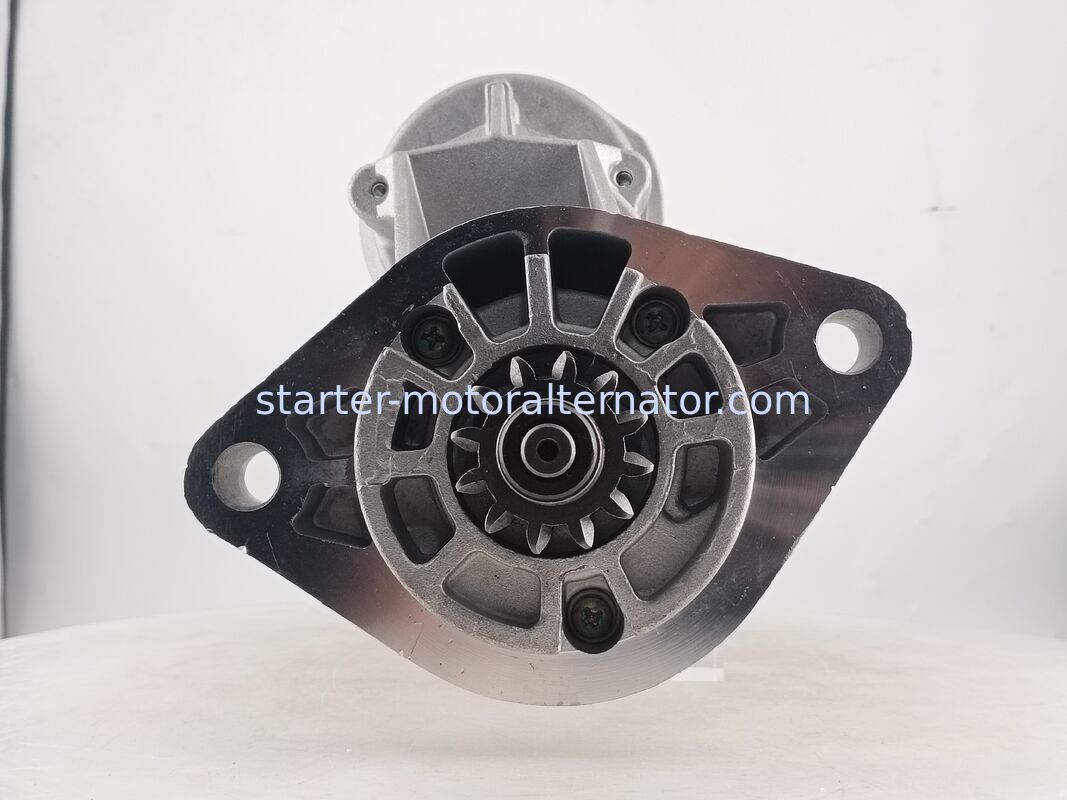

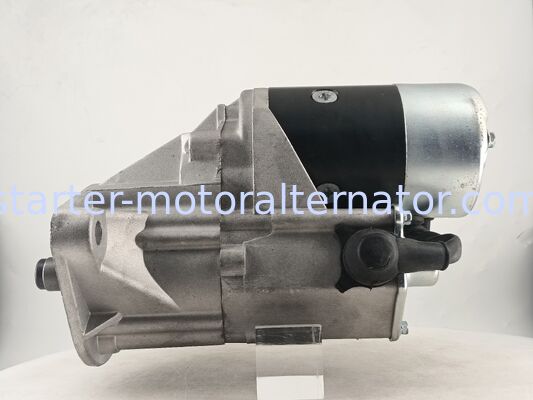

24V 4.5KW 12T Engine Starter Motor for TOYOTA and KOMATSU with Premium Components

기본 정보

원래 장소:	중국
브랜드 이름:	YUTE
모델 번호:	QDJ2107U

최소 주문 수량:	10
가격:	협상 가능
포장 세부 사항:	만기 수익률 /Neutrail /Customized
배달 시간:	5~30 일
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력:	0 달

최고의 가격 지금 연락

상세 정보

응용:	메시 퍼거슨 MF	보증:	18개월
상태:	100% 새로운	전압:	24V
품질:	100% 테스트됨	북서쪽:	8.45kg
강조하다:	24V Engine Starter Motor , 4.5KW Starter Motor , 12T Electric Starter Motor

제품 설명

24V 4.5KW 12T Engine Starter Motor

Compatible with TOYOTA 2810017020, 2810017030 and KOMATSU 1280008280, 1280008620 part numbers

Cross-Reference Part Numbers

Manufacturer	Part Numbers
Bsc	0986019171
Cargo	111679
CAS	CST40605AS
Delco Remy	DRS3304
Denso	1280008280, 1280008620, 1280008621, 2280001600, 2280001601, DSR1013
HC-PARTS	JS1021
HELLA	8EA737345001
KRAUF	STN1021LC, STN1021SU, STN1021UL, STN1021WD, STN1021YJ
Lucas	LRS01893, LRS1893
Magneti Marelli	944280522760
Motorherz	STN1021RB, STN1021WA
PA	PA510117
Prestolite	20513035
Toyota	2810017020, 2810017030, 281001703084
Unipoint	STR6182
Valeo	458587
WPS	32893N
ZAUFER	300N10402Z

Premium Quality Components

Grease: Gear box and drive gear utilize German imported lubricating oil meeting military high/low temperature standards (-50°C to 230°C)
Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards with high temperature resistance to 230°C
Steel: Stator casing features fine drawing seamless steel tube; drive gear uses 20# steel cold chamber forging process
Aluminum: All aluminum components manufactured from international standard ADC12 material
One-way Gear: Songer system standard quality
Relay: Taiwan Songer imported with chip protection to prevent burning
Generator Core: Utilizes silicon steel sheets for effective magnetic field performance
Enameled Wire: All F grade 180°C high temperature wire from major domestic manufacturers
Insulation Material: 350°C high temperature resistance, featuring inner fiber and outer rubber hose with Valeo unified parameter platform
Rotor: Claw pole and rigid ring design with technological innovation for improved low speed performance; brushless motors include magnetic steel
Electronic Components: Supplied by four major domestic manufacturers

Vehicle Applications

TOYOTA Coaster 4.2 D [1HZ] 1993-1996

TOYOTA Land Cruiser 4.2 Diesel (HZJ80_)[1H-Z] 01.1990-12.1995

TOYOTA Land Cruiser 4.2 TD (HDJ80)[1HD-FT] 01.1995-05.1996

TOYOTA Land Cruiser 4.2 TD (HJD80)[1HD-T] 08.1992-12.1995

TOYOTA Land Cruiser 4.2 TD (HZJ7_V)[1H-Z] 01.1990-12.1995

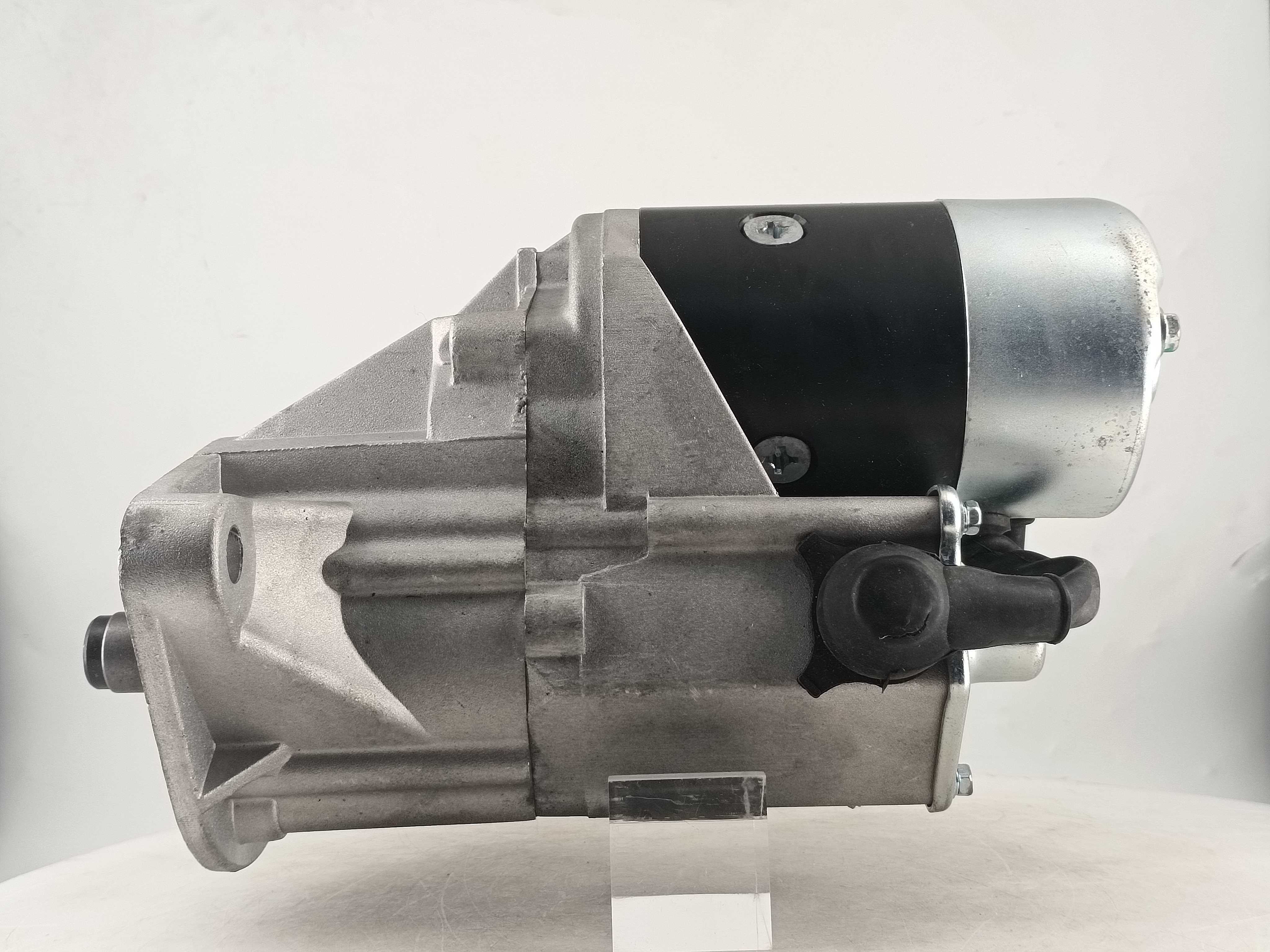

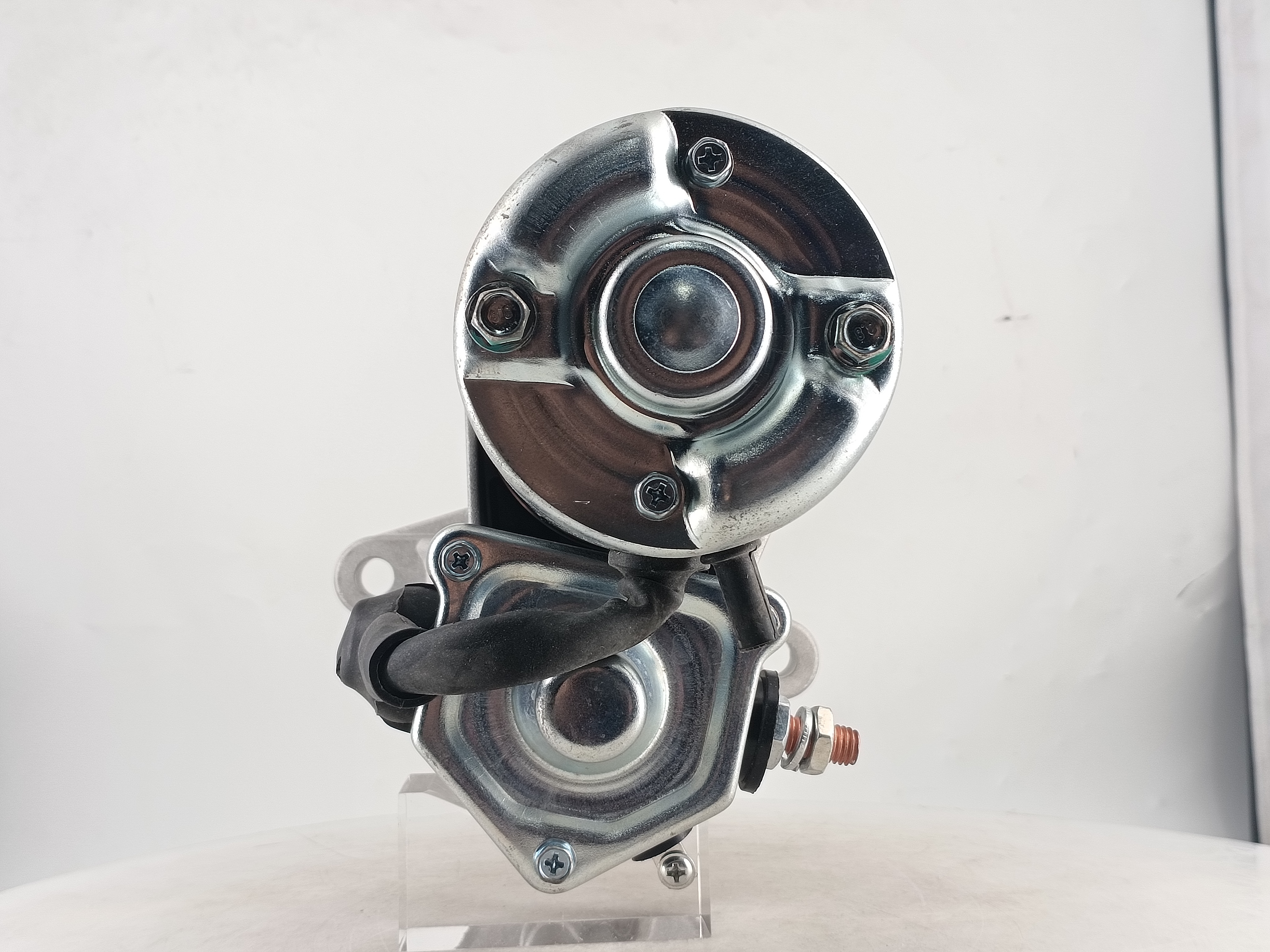

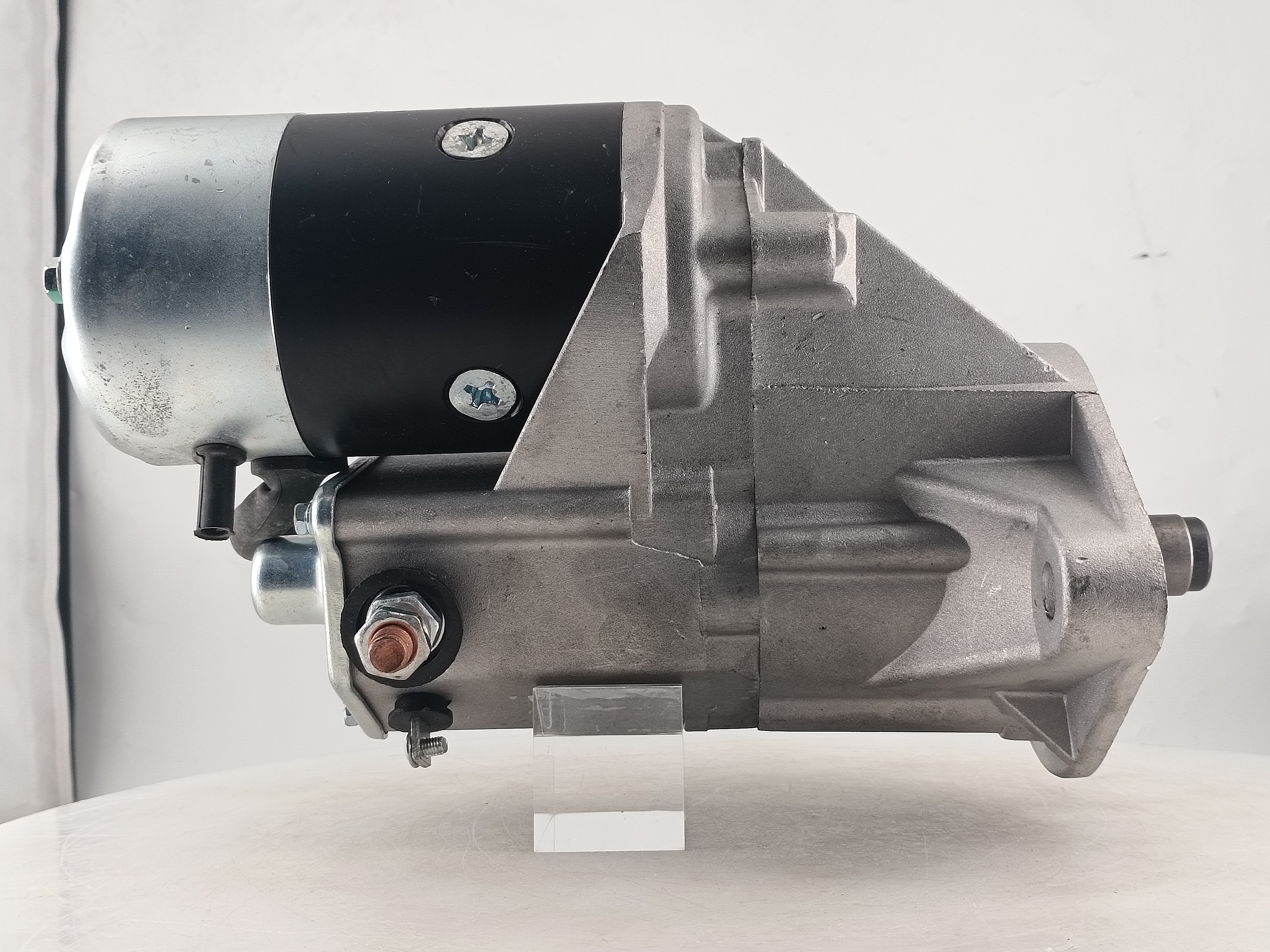

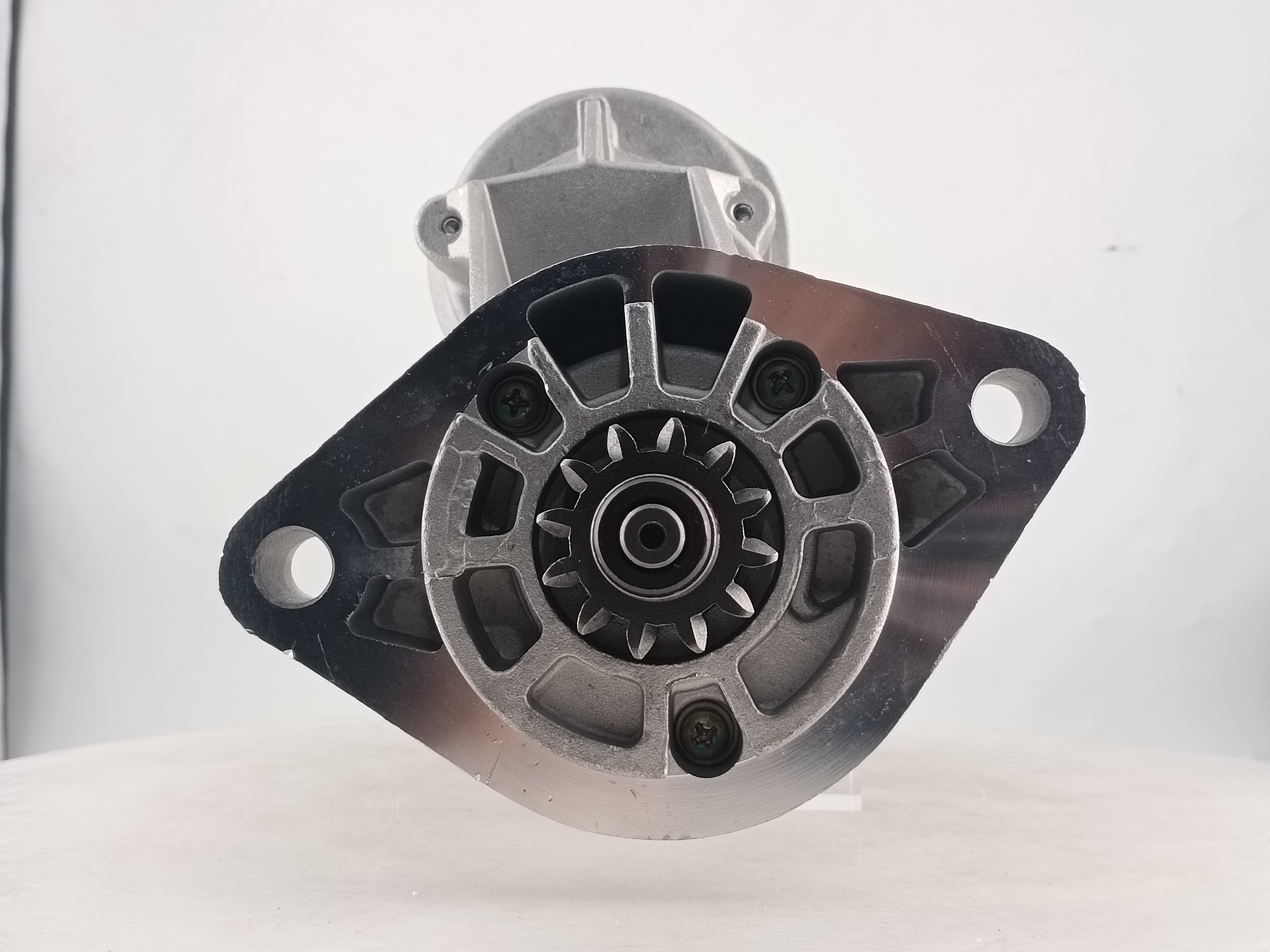

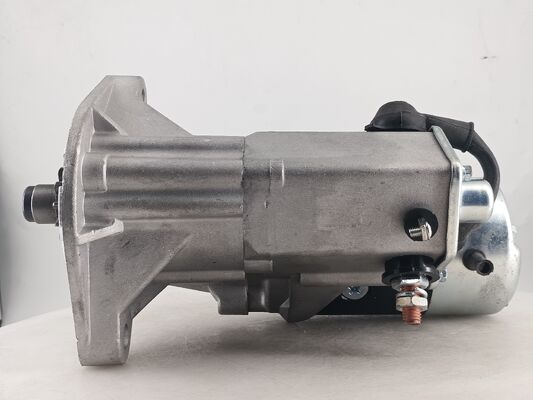

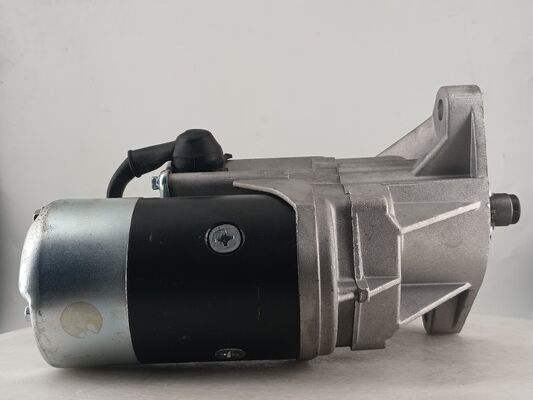

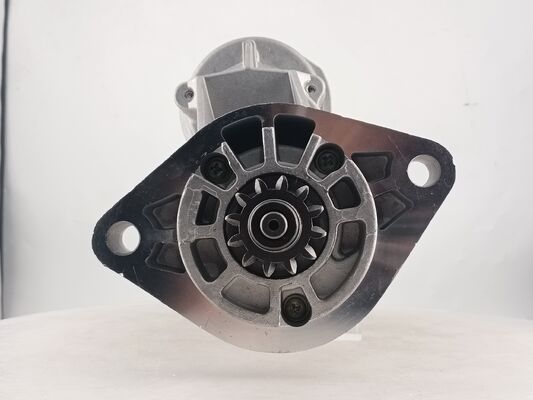

Product Image

Manufacturer Profile

Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of motor starters and alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automated production lines, the company achieves an annual output of more than 200,000 units.

After 14 years of dedicated development, Yute Motor has become an industry pioneer, with products certified to ISO9001:2000, QS-9000, and ISO/TS16949 standards. The motor series produced by Yute have reached international advanced levels, with construction machinery motor sales for excavators and heavy trucks consistently leading the market.
